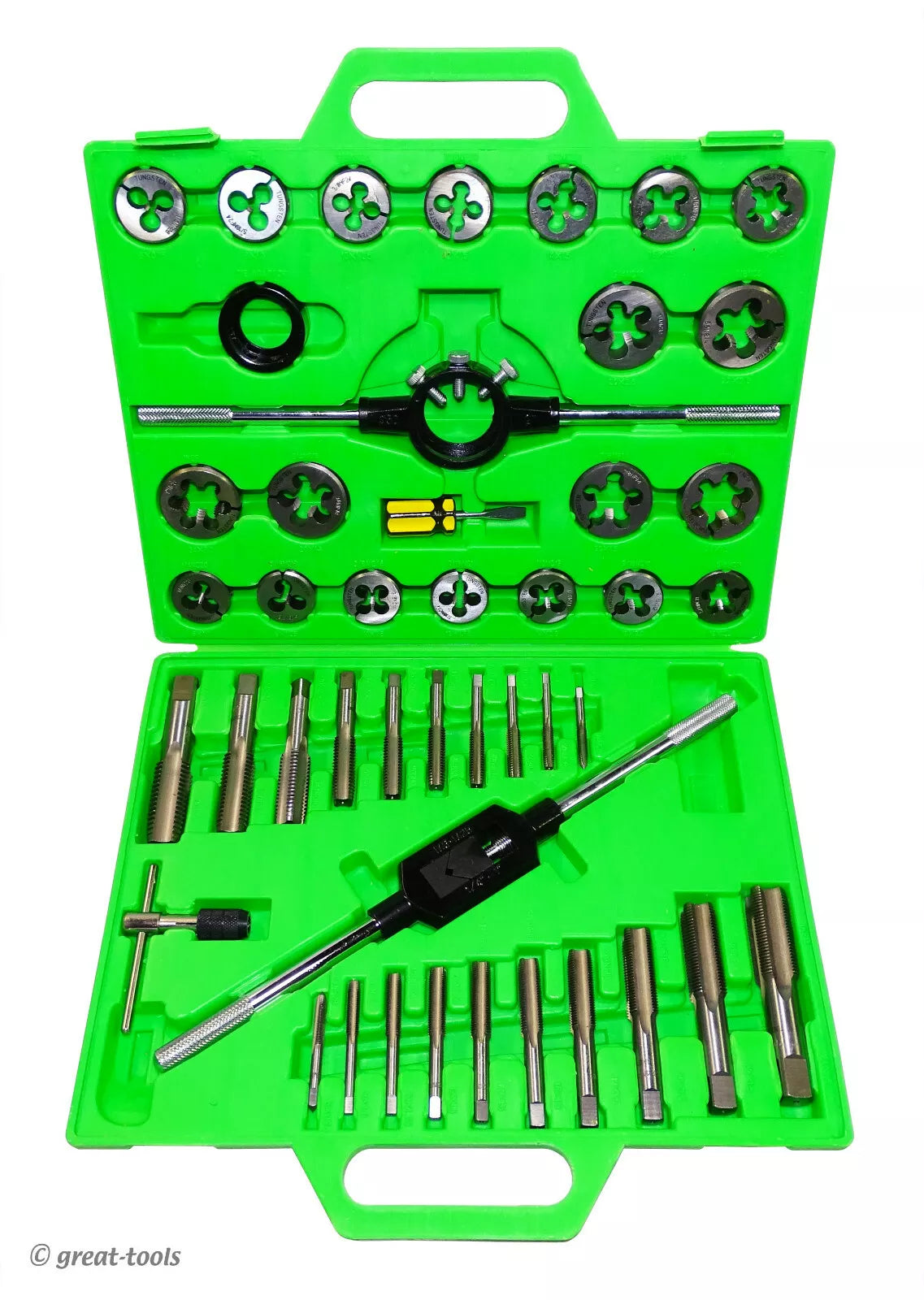

Tap And Die Set, Standard, Sae 45 Piece
Tap And Die Set, Standard, Sae 45 Piece
Regular price
$110.00
Regular price
Sale price
$110.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Brand new 45-piece standard / SAE tap and die set
- Manufactured from high quality drop forged, heat treated, tungsten alloy steel
- Rust resistant satin finish
- Precision machined to exacting standards
- Designed for cutting new threads but can be used to chase threads
- All tools meet Rockwell hardness standards 58-61 HRC
- Set included a drill chart and a lubrication chart based on the material to be threaded
- Blow molded storage case
- See chart below for a complete list of contents
FINE DIES: COARSE DIES: FINE TAPS: COARSE TAPS: OTHER PARTS: 1/4" x NF28 1/4" x NC20 1/4" x NF28 1/4" x NC20 small tap holder 5/16" x NF24 5/16" x NC18 5/16" x NF24 5/16" x NC16 large tap holder 3/8" x NF24 3/8" x NC16 3/8" x NF24 3/8" x NC16 die holder 7/16" x NF20 7/16" x NC14 7/16" x NF20 7/16" x NC14 die adapter 1/2" x NF20 1/2" x NC13 1/2" x NF20 1/2" x NC13 screwdriver 9/16" x NF18 9/16" x NC12 9/16" x NF18 9/16" x NC12 storage case 5/8" x NF18 5/8" x NC11 5/8" x NF18 5/8" x NC11 3/4" x NF16 3/4" x NC10 3/4" x NF16 3/4" x NC10 7/8" x NF14 7/8" x NC9 7/8" x NF14 7/8" x NC9 1" x NF14 1" x NC8 1" x NF14 1" x NC8
